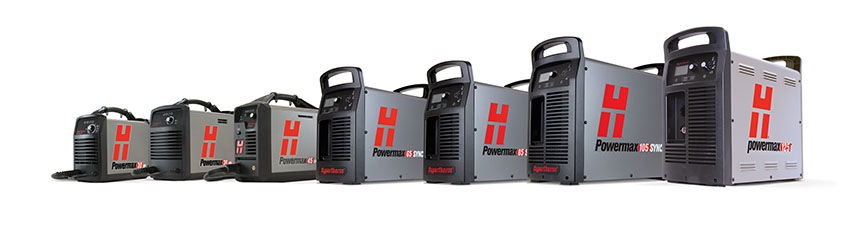

Hypertherm Powermax Range
Powermax45 XP
Cut capacity
1/2” (12 mm) mild steel and stainless steel (10mm for aluminium)
Powermax65 SYNC™
Cut capacity
5/8” (16 mm)
Powermax85 SYNC™
Cut capacity
3/4” (19 mm)
Cut capacity
1/2” (12 mm) mild steel and stainless steel (10mm for aluminium)
Input voltage at 50/60 Hz
CSA 200-240 V, 1-PH
CSA 480 V, 3-PH
CE 230 V, 1-PH
CE 400 V, 3-PH
Duty Cycle at full output2
CSA 50% 200-240 V, 1-PH
CSA 50% 480 V, 3-PH
CE 50% 230 V, 1-PH
CE 50% 380/400 V, 3-PH
Gas
Air or nitrogen
Motor generator requirement for full arc stretch at full output
8 kW
Download Product Bulletins
Cut capacity
5/8@” (16 mm)
Input voltage at 50/60 Hz
CSA 200-480 V, 1-PH
CSA 200-600 V, 3-PH
CE 400 V, 3-PH
Duty Cycle at full output2
CSA 50%, 230-600 V, 1/3-PH
CE 50% 380/400 V, 3-PH
Gas
Air or nitrogen
Motor generator requirement for full arc stretch at full output
15 kW
Download Product Bulletins
Cut capacity
3/4” (19 mm)
Input voltage at 50/60 Hz
CSA 200-480 V, 1-PH
CSA 200-600 V, 1/3-PH
CE 400 V, 3-PH
Duty Cycle at full output2
CSA 60%, 239-600 V, 3-PH
CE 60%, 380/400 V, 3-PH
Gas
Air or nitrogen
Motor generator requirement for full arc stretch at full output
20 kW
Download Product Bulletins
Powermax105 SYNC™
Cut capacity
7/8” (22 mm)
Powermax125
Cut capacity
1” (25 mm)
Cut capacity
7/8” (22 mm)
Input voltage at 50/60 Hz
CSA 200-600 V, 3-PH
CE 230-400 V, 3-PH
CE 400 V, 3-PH
CCC 380 V, 3-PH
Duty Cycle at full output2
CSA 80% 480-600 V, 3-PH
CE 80% 400 V, 3-PH
CCC 80% 380 V, 3-PH
Gas
Air or nitrogen
Motor generator requirement for full arc stretch at full output
30 kW
Download Product Bulletins
Cut capacity
1” (25 mm)
Input voltage at 50/60 Hz
CSA 480 V, 3-PH
CSA 600 V, 3-PH
CSA 400 V, 3-PH
CSA 380 V, 3-PH
Duty Cycle at full output2
CSA 100% 480-600 V, 3-PH
CE 100% 400 V, 3-PH
CCC 100% 380 V, 3-PH
Gas
Air or nitrogen
Motor generator requirement for full arc stretch at full output
40 kW
