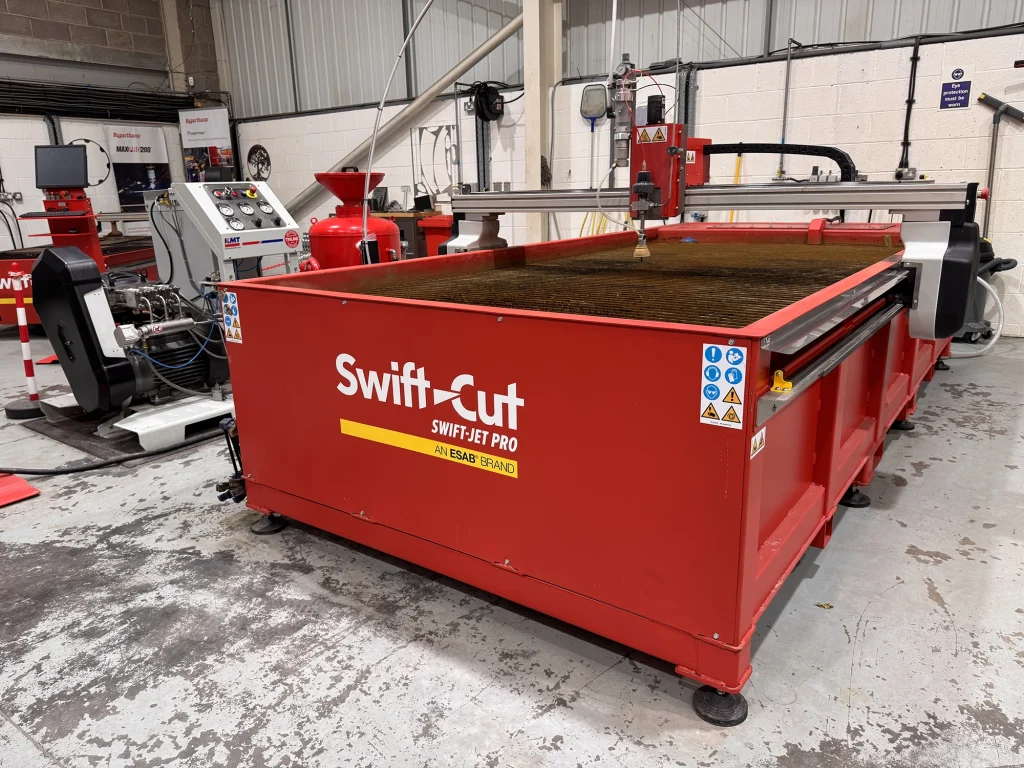

Ex-demo Swift-Jet Pro 3000
Comes complete with:
- KMT High Pressure Pump
- Waterjet Programming Software
- 12 month warranty for the table and 6 months warranty for the pump
- Fully serviced before despatch
£65,000 EX VAT
UK OFFER ONLY
Technical Specifications
FEATURES
KMT High Pressure Pump
IGEMS and SwiftCNC
Market leading software combined to produce the perfect partnership for powerful waterjet programming control
Underwater cutting system
Submerse your cutting material with ease which means less noise and less mess. Water level can be raised and lowered by up to 60mm (2.3”)
Fully welded tank
Single piece heavy-duty fully welded tank design with durable paint finish
Sealed linear bearings
Triple sealed linear bearings with scrapers on X and Y axis protect against moisture and cutting particulate ingress
Abrasive regulator
A mini hopper with abrasive metering system regulates the flow of garnet into the nozzle, improving flow consistency and reducing the likelihood of blockages caused by surges and fluctuations in the garnet feed
POWER SOURCE OPTIONS

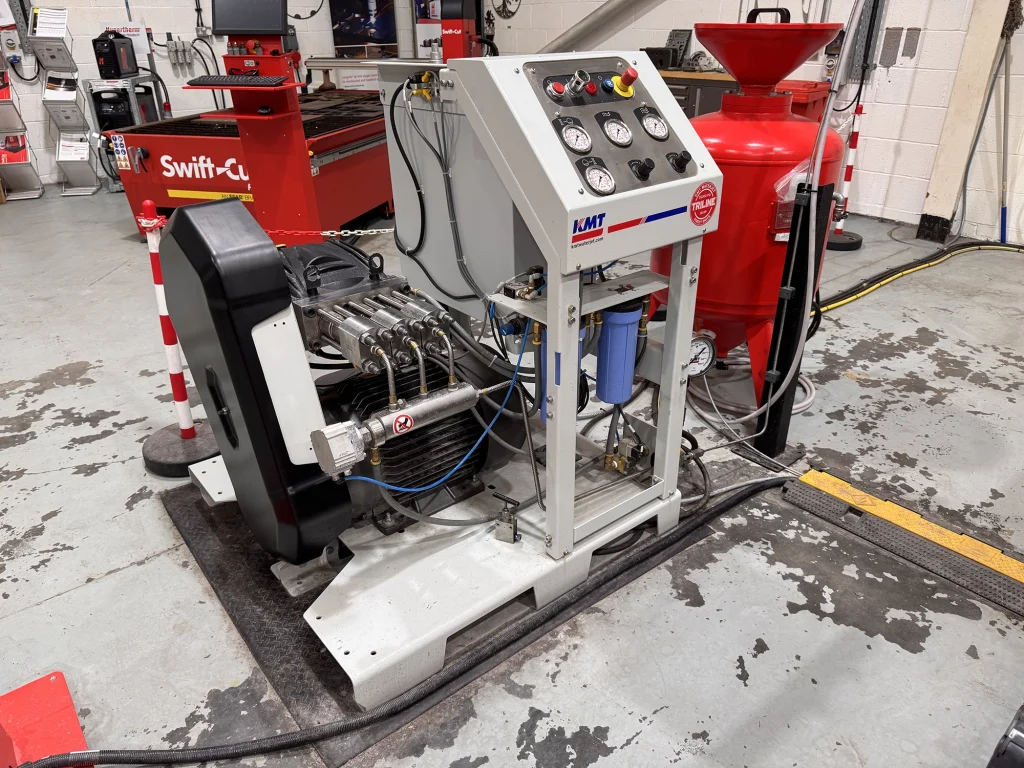

KMT High Pressure Pump
• Output Pressure – 55,000 PSI
• Motor rating – 30 HP
• IE3 compliant motor
• Adjustable high and low pressure
• Electrical control panel with relay-based control system
• Patented valve automatically controls Pressure & Flow Rate
• Economical softstarter reduces demand of motor startup current
• No separate cooling water required. Input water supply – 3 bar, 4lpm
• Power transmission operates motor to topworks with easy to maintain belt and pulley drive system
• Emits 82dBA Sound Level: Lower than both OSHA (90dB) & NIOSH (85dBA) Daily Permissible Noise Level Exposure
• It is imperative a water quality test is carried out before machine installation to determine if any additional water
treatment is required
BROCHURE
Please click the button below to fill out our form and access all our brochures and tech spec documents.
