The benchmark in
affordable, quality
waterjet cutting

It cuts virtually anything!

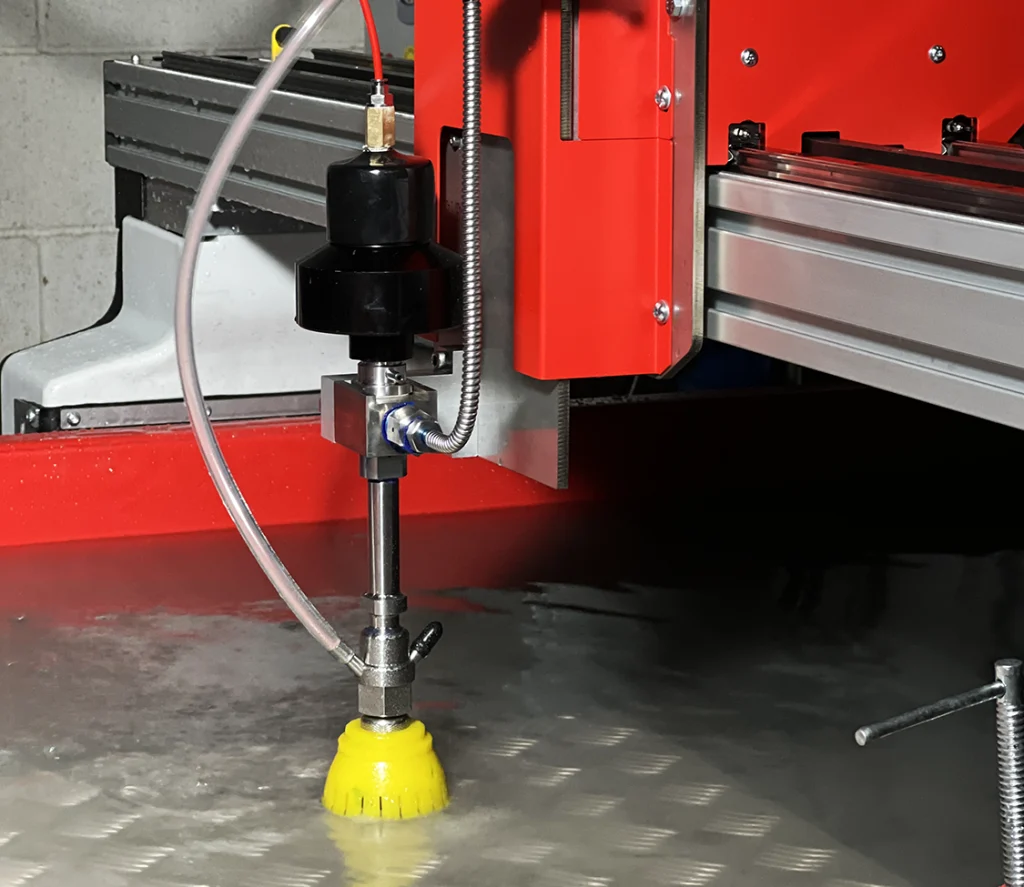

The Swift-Jet Pro is one of the most versatile CNC cutting machines available today. From glass to granite, rubber to resin, and steel to stone, this machine cuts through it all. Using a combination of highly pressurised water, mixed with abrasive (garnet), the resulting focused beam of water makes light work of even the toughest materials. Smooth edge finish, no heat affected zone and little to no post processing.

Affordable, smart cutting

Built around the market leading Pro plasma machine, the Swift-Jet Pro features the same super strong fully welded base, coupled together with an energy efficient, long service life, high pressure pump from Hammelmann, Germany. This ensures lower running costs and a faster ROI compared to other waterjet systems.

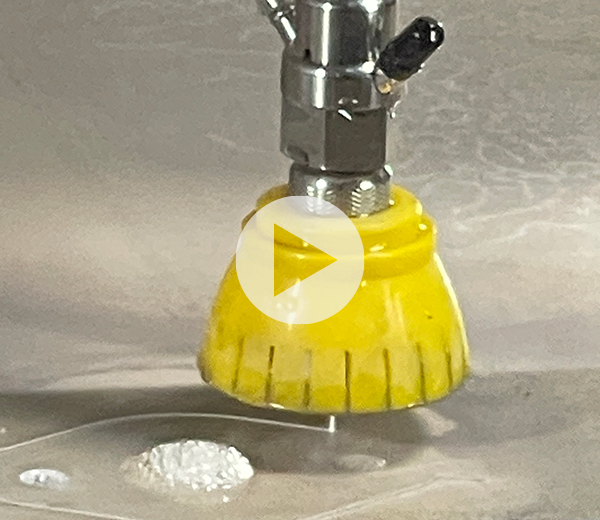

See it in action

“Nothing else comes close in terms of price, features, and support”.

We have dedicated experience centres in many locations around the world. We can also carry out personalised remote demonstrations over Zoom, TeamViewer, Microsoft Teams and WhatsApp platforms. You can send-in or bring parts or drawings with you to cut out, or we can create something for you which best represents your particular application.

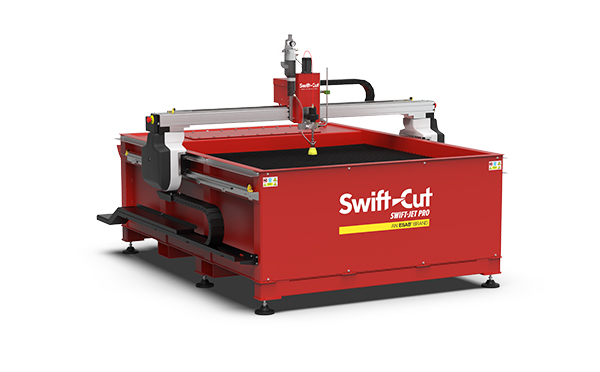

Swift-Jet Pro Range Sizes

SJP 2500

2500mm x 1250mm
8’ x 4’

SJP 3000

3048mm x 1524mm
10’ x 5’

Benefits of a Swift-Jet Pro

There’s lots of reasons why you should consider the Swift-Jet Pro for your next CNC waterjet cutting machine. Here, we’ve summarised the top 12!

Benefits of a Swift-Jet Pro

There’s lots of reasons why you should consider the Swift-Jet Pro for your next CNC waterjet cutting machine. Here, we’ve summarised the top 12!

Full online support worldwide

Underwater cutting system

Cut metal up to 50mm thick

High/low pressure cutting

Cut low density materials up to 100mm thick

Lower running costs

Standalone operators console

Triple sealed linear bearings

Cut virtually any material!

Fully welded base and tank

IGEMS software included as standard

Longer service intervals than intensifier pumps



Full online support worldwide



Underwater cutting system



Cut metal up to 50mm thick



High/low pressure cutting



Cut low density materials up to 100mm thick



Lower running costs



Standalone operators console



Triple sealed linear bearings



Cut virtually any material!



Fully welded base and tank



IGEMS software included as standard



Longer service intervals than intensifier pumps

We have outstanding feedback

“Nothing else comes close in terms of price, features, and support”

Charlie Insley
Burton Rubber

“We’re astounded that such impressive engineering is still so cheap”

Michael Palmer
CDC Designs

“We cannot believe the accuracy and edge quality that we’re able to give our customers”

Glen Lawhon
Lawhon Welding

We have outstanding feedback

Take control of your cutting with a Swift-Cut CNC machine

Whether you’re ready to buy, would like a demonstration in our customer experience centre, or just have some questions regarding our machines or software, please feel free to leave an enquiry and one of our team will be in touch.

Ease to use & Affordable

Heavy duty design & Proven reliability

Fantastic support

Superb cut quality

Quick setup and feature rich

LEAD_web22_new_SHORT_1
Name
Name

Take control of your cutting with a Swift-Cut CNC machine

Whether you’re ready to buy, would like a demonstration in our customer experience centre, or just have some questions regarding our machines or software, please feel free to leave an enquiry and one of our team will be in touch.

Ease to use & Affordable

Heavy duty design & Proven reliability

Fantastic support

Superb cut quality

Quick setup and feature rich

LEAD_web22_new_SHORT_1
Name
Name

Technical specification

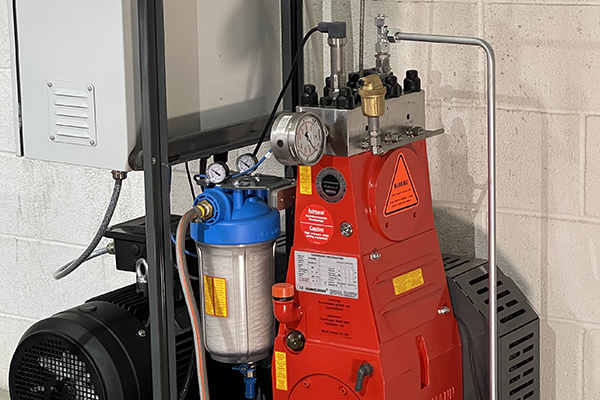

Hammelmann direct drive pump
The quality of the German designed and built Hammelmann high pressure pump is indisputable. 30% more energy efficient than other waterjet systems, and much longer service intervals to match

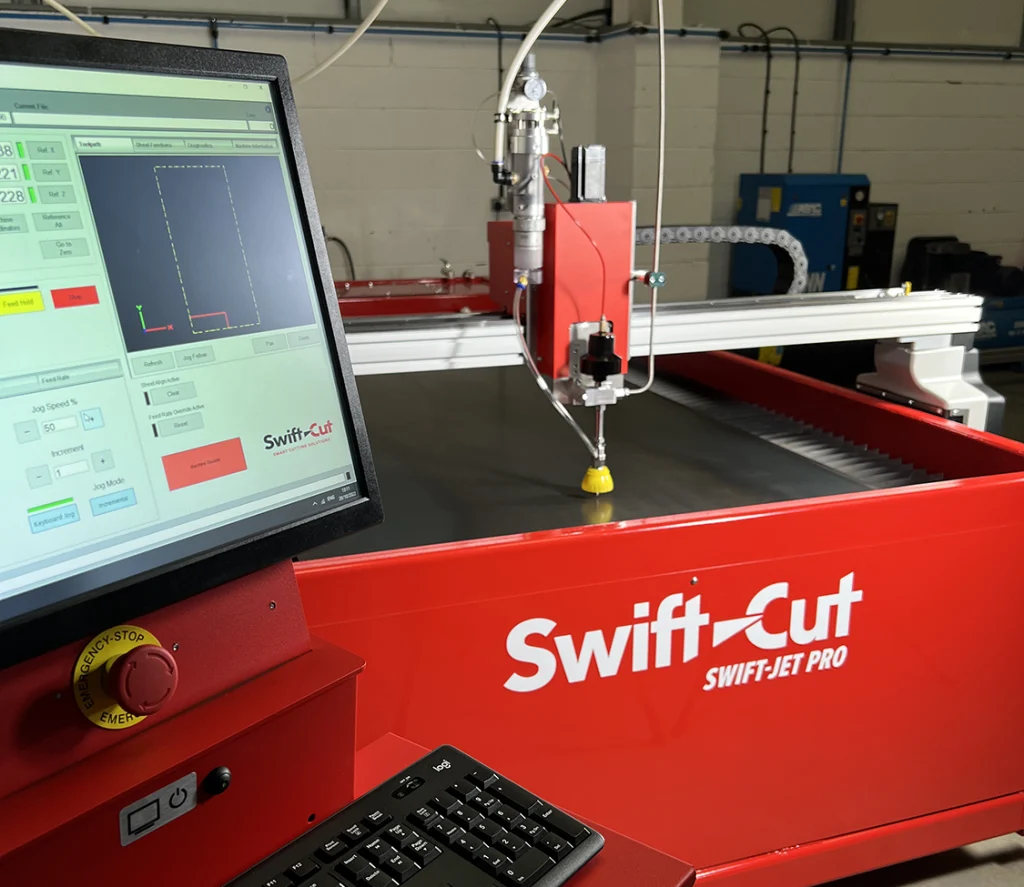

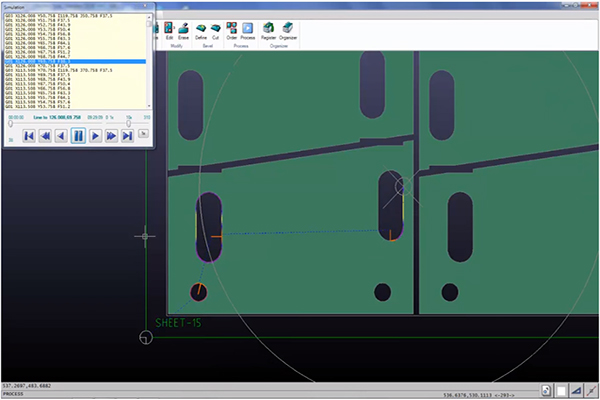

IGEMS and SwiftCNC
Market leading software combined to produce the perfect partnership for powerful waterjet programming control

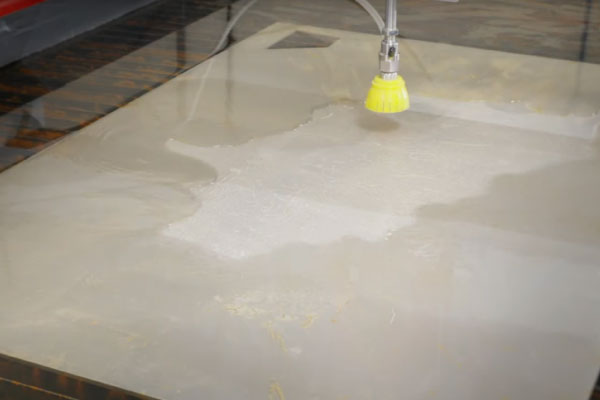

Underwater cutting system
Submerse your cutting material with ease which means less noise and less mess. Water level can be raised and lowered by up to 60mm (2.3”)

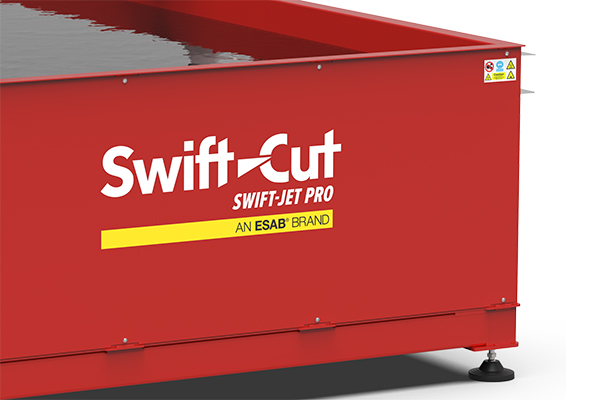

Heavy duty base
Fully welded base and tank provides support and rigidity to the cutting bed ensuring the maximum levels of accuracy remain

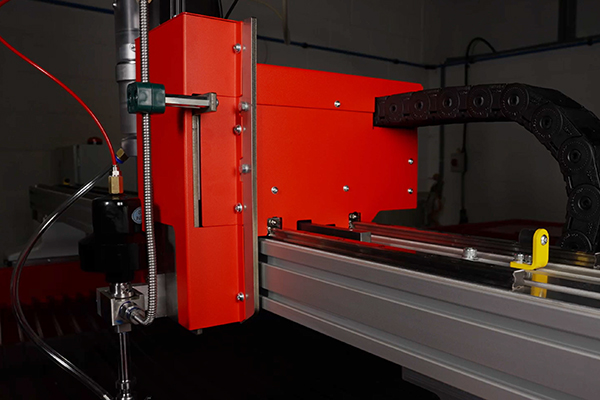

Sealed linear bearings
Triple sealed linear bearings with scrapers on X and Y axis protect against moisture and cutting particulate ingress

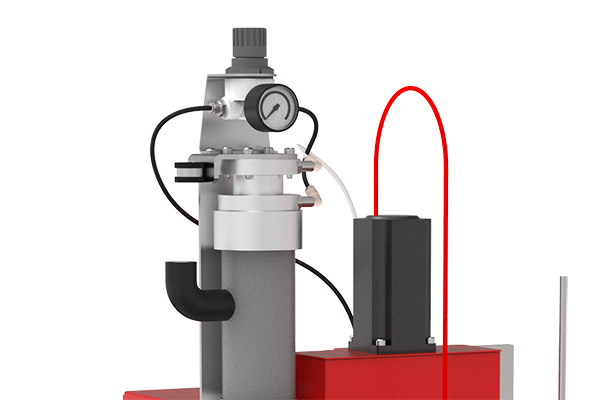

Abrasive regulator
A mini hopper with abrasive metering system regulates the flow of garnet into the nozzle, improving flow consistency and reducing the likelihood of blockages caused by surges and fluctuations in the garnet feed

All technical information and more is now available in our brochures.

To get access to all of our documentation you will need to complete this form.

LEAD_web22_new_SHORT_1
Name
Name

We’ve kept things simple here with just one fantastic pump to choose from

Our tech specs are now available in our brochures.

to get access to all of our documentation you will need to complete this form.

LEAD_web22_new_SHORT_1
Name
Name

See other Swift-Cut products

A collection of cutting-edge CNC plasma and waterjet cutting machines. Whether you want to plasma cut 0.7mm galvanised mild steel, or waterjet 100mm expanded foam, we have the CNC cutting machine for you.

The Swift-Cut Range

Pro

Perfect for everyday metal cutting up to 25mm

HVAC Pro

Cut thin materials at up to 9m/min

XP

Production metal cutting up to 32mm

FAQ’s

The Swift-Jet Pro is designed to cut a wide variety of materials. From expanded foam for packaging materials, to granite slabs for kitchen worktops, our machine can cut them all. The only materials you cannot cut are tempered glass, diamonds and brittle plastics

Our Swift-Jet Pro waterjet requires an electricity supply, a water supply and a compressed air supply in order to run. The table (inc. console) requires a single phase 110v-230v (6A-4A) electricity supply. The Hammelmann high pressure pump requires a three phase 380v-480v (40A-30A) electricity supply, and standard tap pressure water supply. The compressed air supply will need to be clean and free of moisture, oil, and any other contaminants. The compressor will need to deliver 17CFM of air flow and have a holding pressure of 7.5bar (110psi)

Like all cutting processes, speed is determined by the type and thickness of material being cut, the power of the machine, and the quality of cut required. The Swift-Jet Pro machine can cut at speeds up to 10m/min (390ipm) for soft materials like foam, however 25mm (1”) thick granite will cut at 20mm/min (3/4”/min)

Abrasive cutting basically means cutting with a mixture of water and abrasive garnet material. The garnet is what allows the high-pressure water stream to cut through dense materials and it is introduced into the water stream just above the cutting nozzle before being directed down onto the sheet material. The garnet is readily available and is classed as a consumable item so once it’s been used to cut through your material, it enters the water tank where it settles to the bottom and will have to be manually removed once it reaches a certain level
