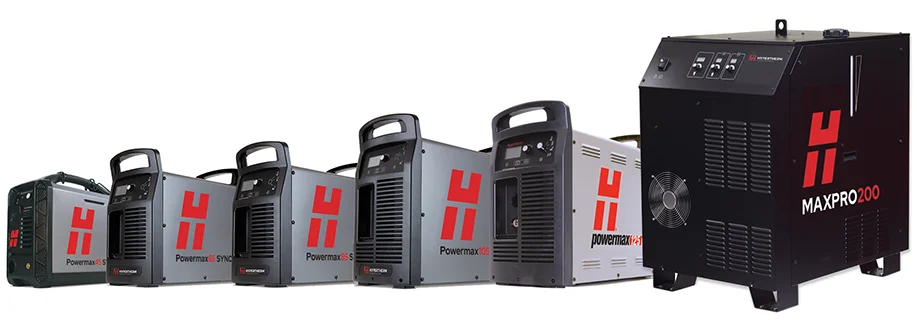

Powermax45 xp

 Cut capacity  1/2” (12 mm) mild steel and stainless steel (10mm for aluminium)

Powermax45 xp - MORE

Powermax45 xp

 Cut capacity

1/2” (12 mm) mild steel and stainless steel (10mm for aluminium)

 Input voltage at 50/60 Hz

CSA 200-240 V, 1-PH
CSA 480 V, 3-PH
CE 230 V, 1-PH
CE 400 V, 3-PH

Duty Cycle at full output2

CSA 50% 200-240 V, 1-PH
CSA 50% 480 V, 3-PH
CE 50% 230 V, 1-PH
CE 50% 380/400 V, 3-PH

 Gas

Air or nitrogen

 Motor generator requirement for full arc stretch at full output

8 kW

Download Product Bulletins

Powermax65

Cut capacity   5/8@” (16 mm)

Powermax65 - MORE

Powermax65

Cut capacity

5/8@” (16 mm)

Input voltage at 50/60 Hz

CSA 200-480 V, 1-PH
CSA 200-600 V, 3-PH
CE 400 V, 3-PH

Duty Cycle at full output2

CSA 50%, 230-600 V, 1/3-PH
CE 50% 380/400 V, 3-PH

Gas

Air or nitrogen

Motor generator requirement for full arc stretch at full output

15 kW

Download Product Bulletins

Powermax85

 Cut capacity   3/4” (20 mm)

Powermax85 - MORE

Powermax85

 Cut capacity

3/4” (20 mm)

 Input voltage at 50/60 Hz

CSA 200-480 V, 1-PH
CSA 200-600 V, 1/3-PH
CE 400 V, 3-PH

 Duty Cycle at full output2

CSA 60%, 239-600 V, 3-PH
CE 60%, 380/400 V, 3-PH

 Gas

Air or nitrogen

 Motor generator requirement for full arc stretch at full output

20 kW

Download Product Bulletins

Powermax105

Cut capacity   7/8” (22 mm)

Powermax105 - MORE

Powermax105

Cut capacity

7/8” (22 mm)

Input voltage at 50/60 Hz

CSA 200-600 V, 3-PH
CE 230-400 V, 3-PH
CE 400 V, 3-PH
CCC 380 V, 3-PH

Duty Cycle at full output2

CSA 80% 480-600 V, 3-PH
CE 80% 400 V, 3-PH
CCC 80% 380 V, 3-PH

Gas

Air or nitrogen

Motor generator requirement for full arc stretch at full output

30 kW

Download Product Bulletins

Powermax125

Cut capacity   1” (25 mm)

Powermax125 - MORE

Powermax125

Cut capacity

1” (25 mm)

Input voltage at 50/60 Hz

CSA 480 V, 3-PH
CSA 600 V, 3-PH
CSA 400 V, 3-PH
CSA 380 V, 3-PH

Duty Cycle at full output2

CSA 100% 480-600 V, 3-PH
CE 100% 400 V, 3-PH
CCC 100% 380 V, 3-PH

Gas

Air or nitrogen

Motor generator requirement for full arc stretch at full output

40 kW
