Change the way you work with the NEW, revolutionary Powermax SYNC™ series
Powermax SYNC™ series, the next generation of Powermax45/65/85/105 systems feature built-in intelligence and a revolutionary single-piece cartridge consumable!
Swift-Cut is the worlds first light industrial CNC OEM to fully test and integrate the new Hypertherm Powermax SYNC™ plasma systems with our cutting machines and software.
As a key partner of Hypertherm for over 10 years, we have worked closely with the global number 1 for plasma power sources and been part of their SYNC™ early adopter program.
Extensive testing of fully nested sheets has allowed us to analyse the performance of the new systems and we would now like to introduce our brand new Swift-Cut SYNC™ video which provides an overview of the advantages available to us now the SYNC™ system is available to purchase.
All new Swift-Cut plasma machines are SYNC™ ready. The SYNC™ power sources are also retrofittable on existing tables (software update required)
8 reasons to upgrade
Increased cut height (on material less than 1/2″)
Reduces the potential for nozzle damage and collision with molten metal produced during the pierce and cutting process.
Consumable longevity
We have experienced over 2000+ pierces per set of consumables. This means;
- Less consumable changes – less downtime for the customer – increased productivity
- Lower cost per part

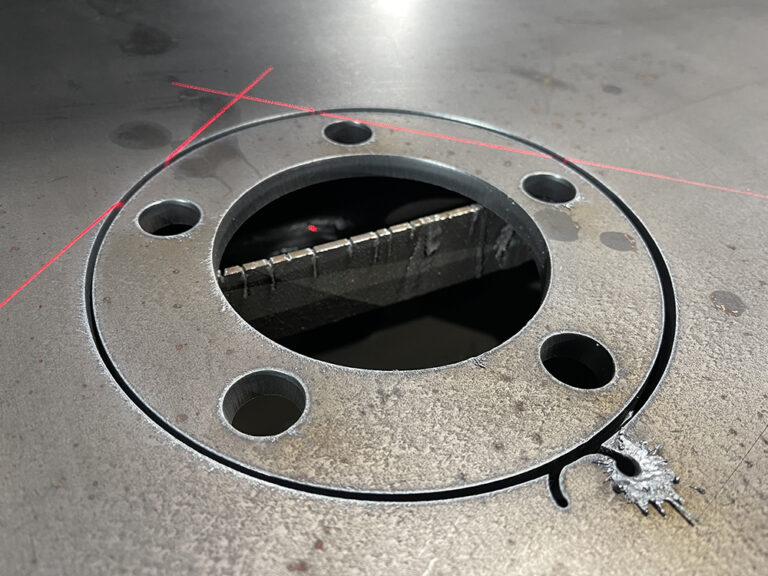

Improved cut quality
Edge finish is smooth and angularity is controlled
Ease of Use
The new cartridge system is easy to install and remove. There’s reduced chance of dropping individual consumables into the table bed. Colour coordinated cartridge makes the correct cutting process (mechanised vs hand-cut etc) easily identifiable
Money saving
Cartridge reduces the chance of used consumables being swapped out too early. Maximise the life of each set and reduces wastage. Consumable age and usage can be checked on the CNC software or through the dedicated Hypertherm app*
Innovative smart system
Innovative smart system and access to cartridge data for performance tracking and analysing usage patterns*
Foolproof design!
For the first time ever, the machine knows what consumables are on the end of the torch! If the wrong consumables are installed, the machine will recognise this and ask if you wish to change**
Less stock inventory
One part per amperage to stock instead of up to five
*Optional cartridge reader accessory required along with smartphone and Hypertherm SYNC app for viewing data away from the operators console
**Phase 2 – coming soon
Powermax45 SYNC™
Powermax45 SYNC™ Technical Spec
Cut capacity
1/2” (12 mm) mild steel and stainless steel (10mm for aluminium)
Input voltage at 50/60 Hz
CSA 200-240 V, 1-PH
CSA 480 V, 3-PH
CE 230 V, 1-PH
CE 400 V, 3-PH
Duty Cycle at full output2
CSA 50% 200-240 V, 1-PH
CSA 50% 480 V, 3-PH
CE 50% 230 V, 1-PH
CE 50% 380/400 V, 3-PH
Gas
Air or nitrogen
Motor generator requirement for full arc stretch at full output
8 kW
Powermax65/85/105 SYNC™
Powermax65 SYNC™ Technical Spec
Cut capacity
5/8” (16 mm)
Input voltage at 50/60 Hz
CSA 200-480 V, 1-PH
CSA 200-600 V, 3-PH
CE 400 V, 3-PH
Duty Cycle at full output2
CSA 50%, 230-600 V, 1/3-PH
CE 50% 380/400 V, 3-PH
Gas
Air or nitrogen
Motor generator requirement for full arc stretch at full output
15 kW
Powermax85 SYNC™ Technical Spec
Cut capacity
3/4” (20mm)
Input voltage at 50/60 Hz
CSA 200-480 V, 1-PH
CSA 200-600 V, 1/3-PH
CE 400 V, 3-PH
Duty Cycle at full output2
CSA 60%, 239-600 V, 3-PH
CE 60%, 380/400 V, 3-PH
Gas
Air or nitrogen
Motor generator requirement for full arc stretch at full output
20 kW
Powermax105 SYNC™ Technical Spec
Cut capacity
7/8” (22 mm)
Input voltage at 50/60 Hz
CSA 200-600 V, 3-PH
CE 230-400 V, 3-PH
CE 400 V, 3-PH
CCC 380 V, 3-PH
Duty Cycle at full output2
CSA 80% 480-600 V, 3-PH
CE 80% 400 V, 3-PH
CCC 80% 380 V, 3-PH
Gas
Air or nitrogen
Motor generator requirement for full arc stretch at full output
30 kW
Powermax125 SYNC™
Delivering maximum power and performance for Hypertherm air plasma, the Powermax125 offers 100% duty cycle and 25mm (1”) pierce capability on mild steel. Combined with the Duramax Hyamp torch and consumables, this machine really is an air plasma powerhouse!
Powermax125 SYNC™ Technical Spec
Cut capacity
1” (25 mm)
Input voltage at 50/60 Hz
CSA 480 V, 3-PH
CSA 600 V, 3-PH
CSA 400 V, 3-PH
CSA 380 V, 3-PH
Duty Cycle at full output2
CSA 100% 480-600 V, 3-PH
CE 100% 400 V, 3-PH
CCC 100% 380 V, 3-PH
Gas
Air or nitrogen
Motor generator requirement for full arc stretch at full output
40 kW
