Next level cutting
“The XP machine is one of the best purchases we’ve ever made. It’s everything we could have hoped for”
The brief was simple, take all that we learnt with our best-selling Swift-Cut Pro plasma machine and build it bigger, stronger and more powerful than ever before.
High performance
“The XP is a good, solid machine that is reliable and efficient. It saves us at least 40 hours a week”
AC Servo motors, helical rack and plasma power source options up to 32mm capacity, the XP range is a feature rich, production ready system that maintains the ease of use and value that all Swift-Cut tables are synonymous with
See it in action
“As soon as we saw the Swift-Cut XP, we knew we had found that machine”
We have dedicated experience centres in many locations around the world. We can also carry out personalised remote demonstrations over Zoom, TeamViewer, Microsoft Teams and WhatsApp platforms. You can send-in or bring parts or drawings with you to cut out, or we can create something for you which best represents your application.
The brief was simple, take all that we learnt with our best-selling Swift-Cut Pro plasma machine and build it bigger, stronger and more powerful than ever before.
Swift-Jet Pro Range Sizes
XP 3000
3000mm x 1500mm
10’ x 5’’
XP 4000
4000mm x 2000mm
13′ x 6.5′
Benefits of a Swift-Cut XP
There’s lots of reasons why the Swift-Cut XP leads the way in durability, affordability, and features. Here, we’ve summarised the top 12!
Benefits of a Swift-Cut XP
There’s lots of reasons why the Swift-Cut XP leads the way in durability, affordability, and features. Here, we’ve summarised the top 12!
[udesign_icon_font name=”fa fa-check” color=”#282fff” size=”14px”] Full online support worldwide
[udesign_icon_font name=”fa fa-check” color=”#282fff” size=”14px”] Cut metal up to 35mm thick
[udesign_icon_font name=”fa fa-check” color=”#282fff” size=”14px”] Super heavy-duty fully welded base
[udesign_icon_font name=”fa fa-check” color=”#282fff” size=”14px”] Standalone operators console
[udesign_icon_font name=”fa fa-check” color=”#282fff” size=”14px”] 360-degree breakaway head
[udesign_icon_font name=”fa fa-check” color=”#282fff” size=”14px”] Smooth & powerful AC Servo motors on all axes
[udesign_icon_font name=”fa fa-check” color=”#282fff” size=”14px”] Cut up to 200mm box section
[udesign_icon_font name=”fa fa-check” color=”#282fff” size=”14px”] Intelligent torch height control
[udesign_icon_font name=”fa fa-check” color=”#282fff” size=”14px”] Advanced CAM software with auto nest as standard
[udesign_icon_font name=”fa fa-check” color=”#282fff” size=”14px”] Fully enclosed drag chains
[udesign_icon_font name=”fa fa-check” color=”#282fff” size=”14px”] SwiftMARK engraving tool
[udesign_icon_font name=”fa fa-check” color=”#282fff” size=”14px”] 2 plasma power source options, inc. mixed gas cutting
[udesign_icon_font name=”fa fa-check” color=”#282fff” size=”1.0em”]
Full online support worldwide
[udesign_icon_font name=”fa fa-check” color=”#282fff” size=”1.0em”]
Cut metal up to 35mm thick
[udesign_icon_font name=”fa fa-check” color=”#282fff” size=”1.0em”]
Super heavy-duty fully welded base
[udesign_icon_font name=”fa fa-check” color=”#282fff” size=”1.0em”]
Standalone operators console
[udesign_icon_font name=”fa fa-check” color=”#282fff” size=”1.0em”]
360-degree breakaway head
[udesign_icon_font name=”fa fa-check” color=”#282fff” size=”1.0em”]
Smooth & powerful AC Servo motors on all axes
[udesign_icon_font name=”fa fa-check” color=”#282fff” size=”1.0em”]
Cut up to 200mm box section
[udesign_icon_font name=”fa fa-check” color=”#282fff” size=”1.0em”]
Intelligent torch height control
[udesign_icon_font name=”fa fa-check” color=”#282fff” size=”1.0em”]
Advanced CAM software with auto nest as standard
[udesign_icon_font name=”fa fa-check” color=”#282fff” size=”1.0em”]
Fully enclosed drag chains
[udesign_icon_font name=”fa fa-check” color=”#282fff” size=”1.0em”]
SwiftMARK engraving tool
[udesign_icon_font name=”fa fa-check” color=”#282fff” size=”1.0em”]
2 plasma power source options, inc. mixed gas cutting
We have outstanding feedback
“The XP machine is one of the best purchases we’ve ever made. It’s everything we could have hoped for”
Pete Harry
ML Ruberton Construction
“The XP is a good, solid machine that is reliable and efficient. It saves us at least 40 hours a week”
Gary Conway
Advanced Diesel Engineering
“As soon as we saw the Swift-Cut XP, we knew we had found that machine”
Matt Logan
LLIW
We have outstanding feedback
Take control of your cutting with a Swift-Cut CNC machine
Whether you’re ready to buy, would like a demonstration in our customer experience centre, or just have some questions regarding our machines or software, please feel free to leave an enquiry and one of our team will be in touch.
[udesign_icon_font name=”fa fa-check” color=”#282fff”] Ease to use & Affordable
[udesign_icon_font name=”fa fa-check” color=”#282fff”] Heavy duty design & Proven reliability
[udesign_icon_font name=”fa fa-check” color=”#282fff”] Fantastic support
[udesign_icon_font name=”fa fa-check” color=”#282fff”] Superb cut quality
[udesign_icon_font name=”fa fa-check” color=”#282fff”] Quick setup and feature rich
Take control of your cutting with a Swift-Cut CNC machine
Whether you’re ready to buy, would like a demonstration in our customer experience centre, or just have some questions regarding our machines or software, please feel free to leave an enquiry and one of our team will be in touch.
[udesign_icon_font name=”fa fa-check-circle” color=”#282fff”] Ease to use & Affordable
[udesign_icon_font name=”fa fa-check-circle” color=”#282fff”] Heavy duty design & Proven reliability
[udesign_icon_font name=”fa fa-check-circle” color=”#282fff”] Fantastic support
[udesign_icon_font name=”fa fa-check-circle” color=”#282fff”] Superb cut quality
[udesign_icon_font name=”fa fa-check-circle” color=”#282fff”] Quick setup and feature rich
Technical specification

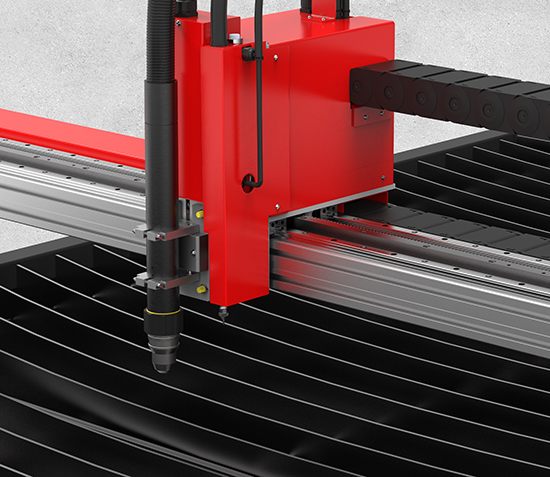

Super heavy-duty gantry and base
Reinforced aluminium extrusion gantry with machined end castings and steel protection covers, combined with an all-steel construction fully welded base, means you have the foundation to cut thick metal plate, day in and day out
Full suite of software included
From drawing, to nesting, to cutting, all Swift-Cut CNC machines include the necessary software to bring your ideas to life. The software is not subscription based so there’s no monthly fees. The XP package also comes with auto nesting software as standard, so maximum sheet utilisation is just a click away
Precision linear rail & helical rack
Linear rail and helical rack on all axes, including twin rail on the x-axis, ensures straight, accurate, and repeatable movements, plus powerful AC servo motors provide a superior motion compared to other guide systems
Engraving head
The SwiftMARK engraving tool allows you to mark and cut in one operation, meaning no more outsourcing or moving project from one machine to another (optional extra).
Torch height control
Intelligent Torch Height Control (ITHC) and Floating initial height sense ensure accurate pierce and cut heights on a wide range of material thicknesses

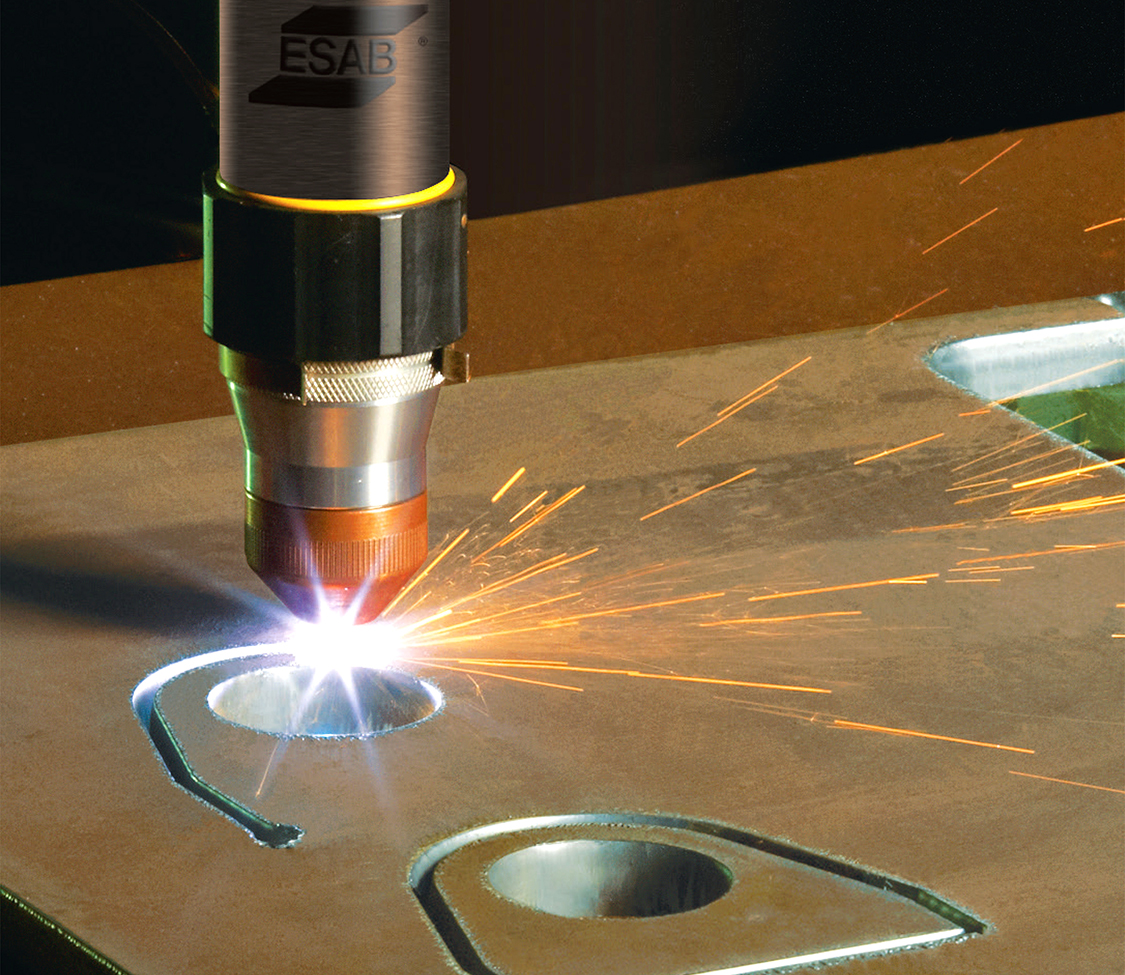

Mixed gas cutting
Mixed gas cutting and water-cooled torch available on m2 200i power source
All technical information and more is now available in our brochures.
To get access to all of our documentation you will need to complete this form.
See other Swift-Cut products
A collection of cutting-edge CNC plasma and waterjet cutting machines. Whether you want to plasma cut 0.7mm galvanised mild steel, or waterjet 100mm expanded foam, we have the CNC cutting machine for you.
FAQ’s
It all depends on your particular application. Downdraft tables are slightly more expensive to purchase than water tables and require connection to either a filtration unit or extraction fan. The additional equipment adds extra noise, but they are easier to clean and your only option if cutting aluminium and stainless steel most of the time. Water tables are less expensive and quieter, and do not require any additional hardware, however they are more difficult to clean and not recommended for certain materials.
There are six plasma power sources to choose from when looking at the XP range. The main difference between each power source is the cutting capacity (generally quoted as the maximum pierce thickness). The options are up to 12mm, up to 16mm, up to 19mm , up to 22mm, up to 25mm and up to 32mm. As a rule of thumb, you should always choose the power source that will comfortably cut your most common thicknesses, so for example if you cut 16mm plate most days, you would want to go for the 19mm capacity power source. Alternatively, if you cut 16mm infrequently and mostly cut 12mm, then the 16mm capacity power source might be better suited. The only power source which offers mixed gas cutting for improved edge finish, faster cut speeds and longer consumable life is the 32mm capacity Hypertherm Max Pro 200.
Please click on our pricing page for information on general pricing for each of our CNC machines. Alternatively, please leave your details on the contact form, or drop us a call or email, and one of our Sales team will be in touch to discuss your particular application(s) in more detail. This will allow us to create a bespoke quotation which includes all the things you need, and none of the things you don’t.
Our XP series CNC plasma machines require an electricity supply and compressed air supply in order to run. The table (inc. console) requires a single phase 110v-230v (6A-4A) electricity supply. The plasma power source will require a single phase 230v (32A) up to a three phase 415v (64A) electricity supply, depending on the model chosen. The compressed air supply will need to be clean and free of moisture, oil, and any other contaminants. The compressor will need to deliver 17CFM of air flow and have a holding pressure of 7.5bar (110psi). If you wish to use the mixed gas cutting capabilities of the Hypertherm Max Pro 200, you will also need an oxygen and/or nitrogen supply.
