Swift-Jet

Thanks to Swift-Cut, it’s never been more affordable or achievable to own a water-jet cutting system. Waterjet technology produces excellent fine-feature cut quality with low edge taper, no heat-affected zone, a narrow kerf, and dross-free cutting. It also offers the ability to process nearly any material and a thickness range capability unmatched by other cutting technologies. The Swift-Jet machine with its easy to use software and powered by Hypertherm HyPrecision pumps provides high sector leading cutting on a wide range of materials at a low-cost investment. Easy to use with exceptional aftercare and support, the Swift-Jet is the answer to affordable, high precision, high quality in-house cutting.

Swift-Jet is our new, affordable and easy-to-use waterjet profiling solution. Offering precision cutting and superior build quality, this smart machine can be used to cut textiles, rubber, foam, plastics, leather, composites, stone, tile, metals and much more. Our machines are calibrated using the very latest Renishaw ball bar testing equipment, ensuring outstanding dynamic positioning and repeatability.

Features

Head Protection

Collision probe protects the cutting head in the event of a crash.

Component protection

Bellows and covers prevent ingress for component protection.

Steel water tank

Epoxy coated heavy duty steel water tank is long lasting and delivers stability for precise cutting.

Standalone operators console

Ergonomic standalone operators console with touch, keyboard and mouse inputs.

Unmatched positioning accuracy

Omron AC servos with high resolution encoders drive precision ball screws on all axes for unmatched positioning accuracy.

Enclosed cable protection

Enclosed cable drag chains protect cables reducing potential downtime.

Machine performance

Maximum traverse speed 15m/min (590 ipm)

Maximum Z clearance 220mm (8.5 inches)

Positional accuracy 0.0150mm (0.001 inches)

Tank Depth 840mm (33 inches)

Power Options

Hypertherm HyPrecison pump

HyPrecision 30hp

HyPrecision 50hp

Software

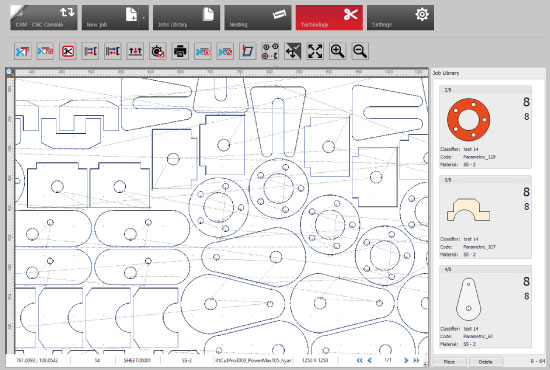

Swift-Cut Software is among the best in the industry – easy to learn, easy to use and with minimal training requirements, machines can be in production within hours of delivery.

COMPLETE SOFTWARE LIST

Automatic nesting
Automatically nests parts for economical sheet usage

Automatic lead in/out
Software automatically applies lead ins/out for quicker programming

Micro joints
Tabs to prevent parts moving whilst cutting

Bridges
Continuous cutting between parts to reduce cycle times

Common-line cut
Cut along shared edges of parts.

Sheet Alignment
Align the cutting path with misaligned sheets on the cutting bed.

Reference points
User configurable reference points for jig fixtures.

Cut modes
5 cut quality modes from fine to rough

Parametric shape library
Over 80 configurable shapes

Part in part nesting
Nest parts in scrap areas to fully utilise the sheet

Customisable cutting rules
 Optimise cutting parameters for best cutting performance

Toolsets
Pre-programmed toolsets for common materials

Customisable toolsets
Modify or create toolsets for new materials.

Job reports
 Export job reports displaying scrap percentage and cutting times.

3D Cut Simulation
Play a 3D machine simulation of the cutting operation.

3D part preview
Preview the part in 3D before cutting

Range Sizes

2710mm x 2130mm
8’9” x 6’9”

4210mm x 2130mm
13’8” x 6’9”
